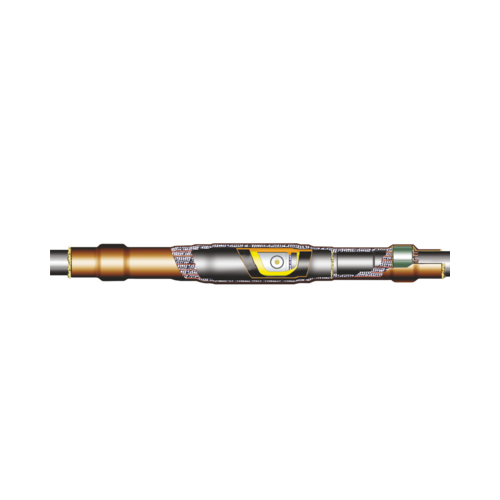

Description of the product: Heat-shrinkable joint 10RSTp-1 (3x50 + 3x25) by Termofit:
🔧 The 10RSTp-1 (3x50 + 3x25) joint is designed for splicing three-core power cables with rubber insulation and additional conductors. It supports conductor cross-sections of 3×50 mm² and 3×25 mm², suitable for both aluminum and copper conductors.
⚡️ The kit includes mechanical connectors with shear bolts, stress control tubing, heat-shrinkable insulation sleeves, and sealing mastic. These components ensure a durable and secure electrical connection without the need for crimping tools.
🏗 Fully compliant with technical standards for 10 kV systems, the joint is suitable for armored and unarmored cables and can be installed in confined spaces, ducts, or directly in the ground.
🌡 Operating temperature range from –50 °C to +50 °C. The joint is resistant to UV radiation, moisture, and environmental stress, making it ideal for both indoor and outdoor applications.
💧 Complete sealing is achieved through thermoplastic adhesive and multilayer heat-shrinkable components, providing long-term protection against water ingress and corrosion.
📜 Complies with applicable technical specifications. Warranty — 5 years. Service life — at least 30 years under proper installation and usage conditions.
Key Features:
Wide Operating Temperature Range: Termofit factories use exclusively advanced technologies and high-quality materials to create joints resistant to ambient temperatures from -50ºC to +50ºC. Whether you're in a hot climate or in severe frost, our joints guarantee a stable cable connection.
High Protection: Termofit's leading designers developed the joint for use in high-humidity conditions – it maintains its reliability and efficiency at air humidity levels up to 98%. The joint is also UV-resistant.
Easy Installation: The inner surface of the product is coated with Termofit hot-melt adhesive, ensuring a completely sealed joint after installation.
Quality Guarantee and Environmental Friendliness: All Termofit products are manufactured from high-quality materials and meet GOST and European standards. Furthermore, our joints are made with plastic insulation, which is effective and durable.
Don't risk the safety and reliability of your electrical infrastructure – work with Termofit tools and products.
